A server data rack is a standardised steel or aluminium frame to house servers, networking equipment, power distribution units, and related IT hardware. The 19-inch rack standard is dominant where the internal mounting width between vertical rails is 482.6 mm. This originated in early 20th-century telephony equipment and is the basis for almost all modern data centre and office IT deployments in 2026.
The terminology can be confusing. A server rack or data rack is the mounting frame itself, a server cabinet or data cabinet is an enclosed version with doors and side panels. Rack cabinets combine structural support with physical security. An open frame rack omits the enclosure panels, easier access and better airflow in controlled environments. Understanding these differences is key when reading product pages and vendor specs.
Choosing the right rack affects airflow management, cable management, physical security and long term scalability. A bad choice can limit future expansion, increase cooling costs and make maintenance harder. For IT managers, system integrators and small business owners planning on-premises deployments, the rack is a 10-15 year infrastructure asset that will outlast multiple generations of servers and switches.
This section will walk you through a practical process to shortlist racks. Before browsing stock or requesting quotes a structured approach reduces procurement risk and ensures the final purchase meets both immediate needs and future growth.
Follow this sequence when evaluating options:
Key decision factors include rack height (from 6U wall cabinets to 47U floor standing units), depth (600 mm, 800 mm or 1000 mm), width (600 mm versus 800 mm for extra cable space) and weight rating (typically 600-1000 kg for full-size racks). Enclosed server rack cabinets offer security and reduced noise transmission but may require additional cooling provisions. Open frame racks are cheaper and simpler to maintain, ideal for secure rooms with controlled environments.
The rack unit, abbreviated as U, is the universal metric for vertical equipment space. One U equals exactly 1.75 inches or 44.45 mm. This standard applies globally across 19-inch rack equipment, so you can mix and match hardware from different vendors without compatibility issues.
Common rack heights for floor standing cabinets are:
Internal usable height is different from overall cabinet height. Castors add 50-100 mm, levelling feet vary by model and roof cable entry or fan trays can add another 50-150 mm. When choosing a rack, check both the total U capacity and the external dimensions to ensure it fits your space.
A practical example: if your equipment is 20U (approximately 889 mm of mounting height) choose at least a 27U rack. This leaves 7U for PDUs, horizontal cable managers, blanking panels and future servers. The cost difference between a 22U and 27U cabinet is minimal compared to replacing an undersized rack in two years.
Depth options range from 600 mm for networking and audiovisual equipment to 800-1000 mm for server chassis made between 2018 and 2026. Some high-performance GPU servers and storage arrays require depths up to 1200 mm but these are less common outside hyperscale environments. Width is less variable, 600 mm is standard and 800 mm is available for extra cable management at the sides.
Server data racks fall into several categories: open frame racks, enclosed server cabinets, wall-mounted cabinets, co-location racks and specialist soundproof or rack-in-rack solutions. Each type addresses different operational requirements depending on environment, security posture and density.

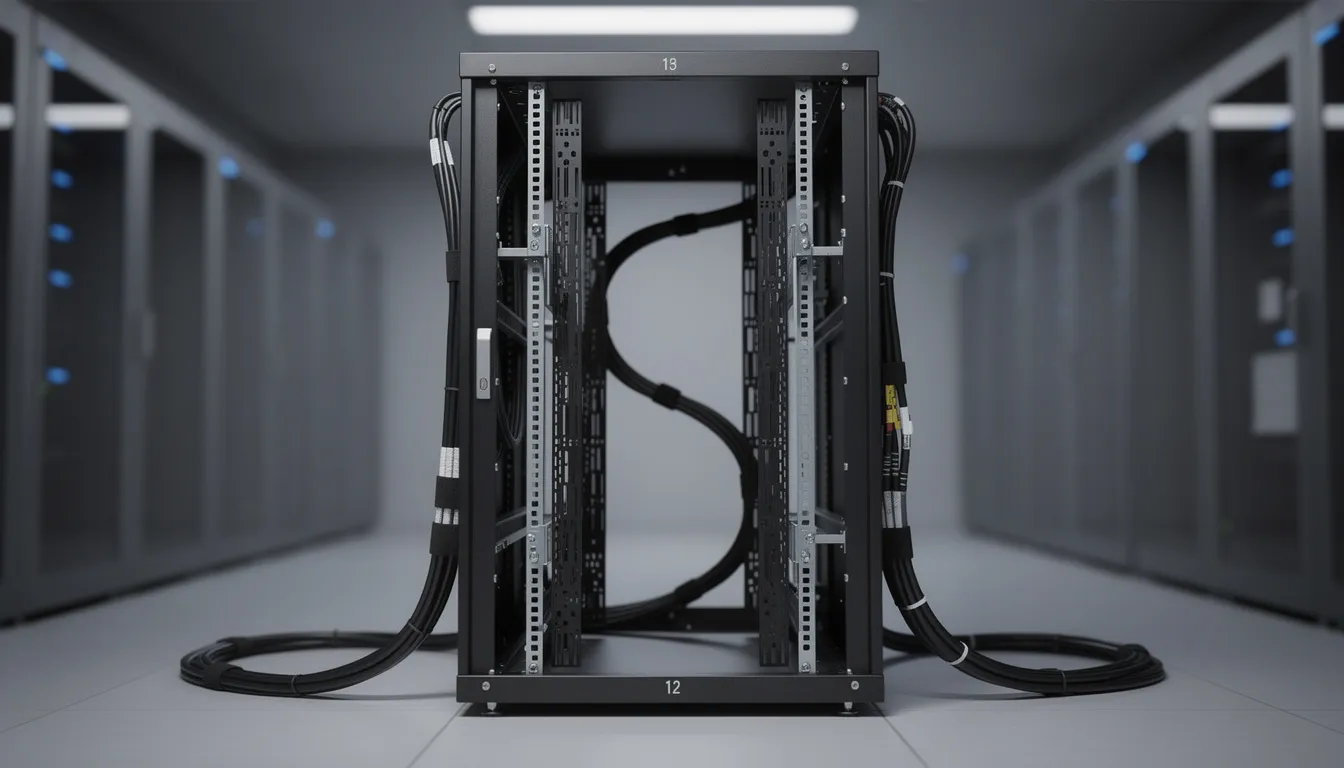

Open frame racks consist of vertical posts and mounting rails without doors or side panels. They offer excellent accessibility and passive airflow, making them cost-effective for secure, climate-controlled rooms. However they provide no protection against tampering, dust ingress or accidental contact. These racks are suitable for dedicated server rooms where only authorised personnel have access and environmental controls are robust.
Enclosed server cabinets add lockable front and rear doors, removable side panels and often perforated steel surfaces for ventilation. Standard data cabinet sizes are 600 × 1000 mm and 800 × 1000 mm footprints with heights from 22U to 47U. The enclosure protects equipment from physical interference and reduces noise transmission – relevant for office environments where servers sit next to workspaces. Panels are typically tool-free for maintenance access while remaining securely fastened during normal operation.
Co-location racks have two, three or four individually lockable compartments within a single frame. A 42U or 47U multi-compartment rack allows managed service providers to house multiple SME clients, each with unique keying and segregated cable channels. This is standard in shared hosting facilities where tenants require physical isolation without dedicating an entire cabinet to a small footprint.
Wall-mounted data cabinets range from 6U to 15U with depths of 450-600 mm. They are suitable for branch offices, meeting rooms and retail locations that require only a few switches, patch panels and a small UPS. These units save floor space and position equipment at a convenient height for maintenance but have limited capacity compared to floor standing alternatives.
When comparing racks from different vendors a systematic checklist ensures critical features are not missed. The following components should be evaluated during any 2024-2026 procurement.Front and rear doors are solid or perforated. Perforated steel doors with 70% open area support hot-aisle/cold-aisle cooling. Solid doors are for noise reduction or visual concealment. Quick-release hinges and swing handles make access easy, with options for electronic access control to integrate with building security.
Side panels protect against lateral access and cable interference. Lockable, removable panels with tool-free release are secure and convenient for maintenance. In co-location scenarios, tamper-evident panels provide audit trails for compliance.
Mounting posts should have fully adjustable 19-inch profiles with clear U numbering on the rails. Front-to-rear depth adjustability for shallow switches and deep server chassis. Cage nuts and screws are standard, some accessories offer tool-less installation for rapid deployment.
Shelves are fixed, sliding or vented. Sliding shelves for servicing without full removal. Vented shelves for non-rack-mountable hardware. Cantilever shelves bolt to the front posts only, for lightweight devices in shallow cabinets.
PDUs (power distribution units) fit between 19-inch profiles or mount vertically in deeper cabinets. UK uses BS1363 for standard loads, C13/C19 for server power supplies and 16A or 32A Commando for high-density. Basic, switched and metered PDU variants offer increasing control and monitoring.
Cable management accessories include vertical trunks, horizontal managers, roof entry brush strip panels and Velcro ties. Reduce clutter, improve airflow and decrease mean time to repair by making cable paths traceable.
Floor interface options are levelling feet or castors. Standard duty castors (around 300kg total) for lightweight cabinets, heavy duty castors for up to 1000kg evenly distributed. Castors make initial and repositioning easy, but brakes must engage once the rack is in place.
Once the rack is installed, cooling, power and cable management become the main operational concerns. Neglect any of these and you’ll increase costs and reduce equipment life.Passive airflow through perforated doors has been the norm since the mid-2000s. Cold air enters at the front, passes over equipment intake vents, absorbs heat and exhausts through the rear. This front-to-back pattern is the basis for hot-aisle/cold-aisle layouts where racks face each other to create defined temperature zones. Blanking panels in empty U positions prevent hot exhaust air from circulating back to equipment intakes.

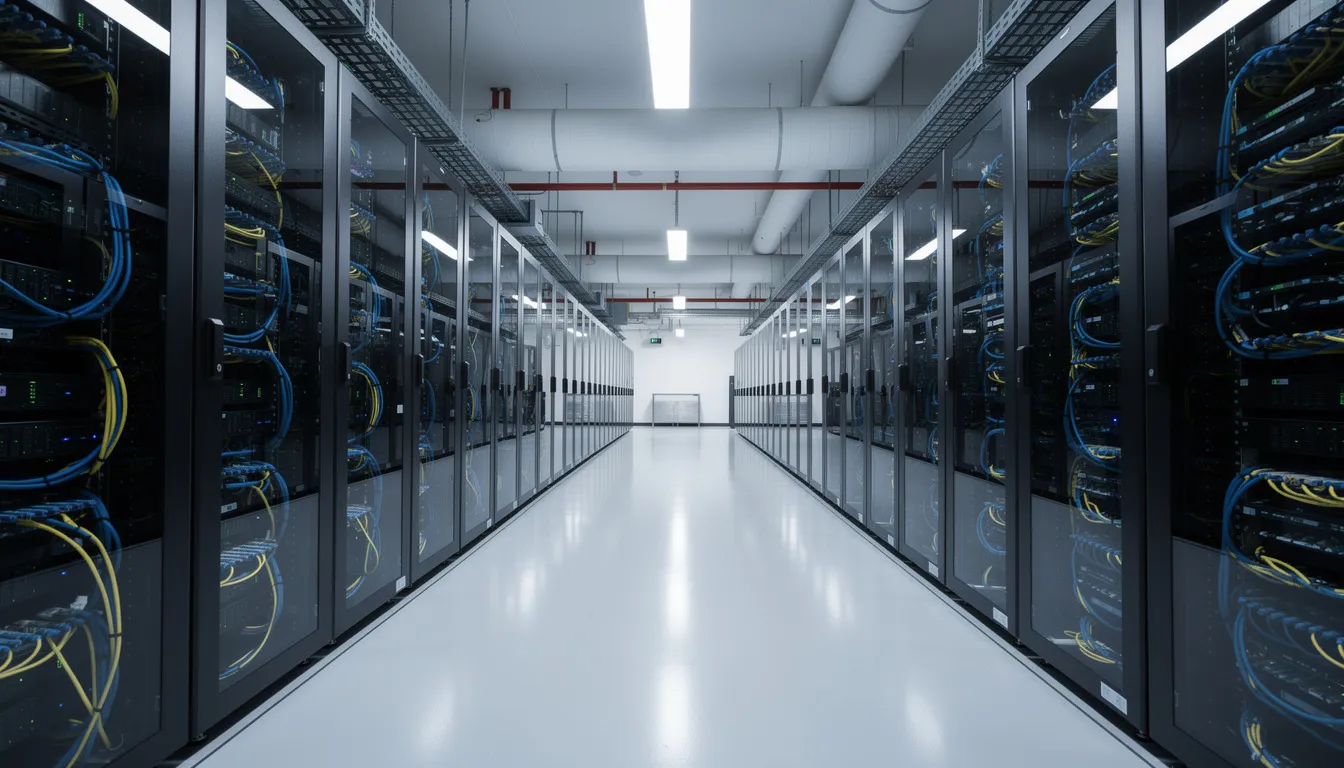

Active cooling options include roof-mounted fan trays that pull hot air up and side-vented designs for cabinets against walls. Larger installations built between 2015 and 2026 often feature aisle containment—physical barriers that separate hot and cold zones—to maximise cooling efficiency. Poor airflow management can increase Power Usage Effectiveness (PUE) by 10-20%, directly impacting electricity costs.
PDU selection depends on total load and outlet requirements:
For UK deployments, standard BS1363 sockets handle equipment with domestic plugs, C13/C19 outlets connect to IEC power cables on servers. Commando plugs (16A or 32A) supply higher-current circuits for dense racks.

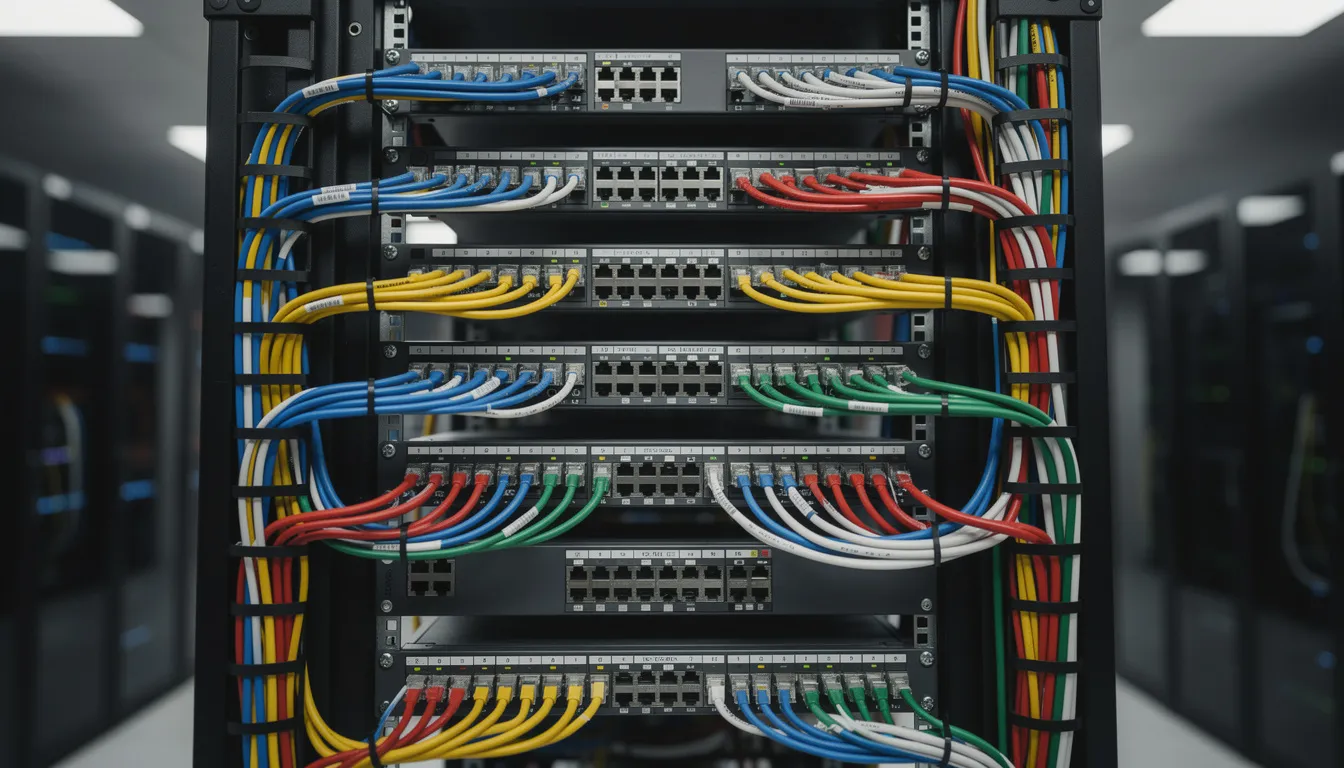

Cable management reduces troubleshooting time and improves airflow. Vertical cable trunks run alongside mounting posts, horizontal managers at each U position, brush strip panels at roof and door entries and Velcro ties for adjustments without cutting.
Physical security of IT infrastructure has been under greater scrutiny since GDPR enforcement in 2018 and ongoing audit requirements through the 2020s. Verifying security and demonstrating controlled access to hardware is now a baseline expectation for organisations handling personal data.
Modern rack cabinets offer multiple security features. Lockable front and rear doors prevent unauthorised access to equipment controls and ports. Individually keyed compartments for multi-tenant environments where each client has exclusive physical access. Tamper-evident side panels reveal interference during audits. Swing handles compatible with electronic access control integrate with building management systems, logging entry events for compliance records.Co-location deployments illustrate these security requirements in practice. A managed service provider might house five SME clients in a single 42U, 4-compartment co-lo rack. Each tenant has a unique key, with separate vertical cable channels and optional dedicated PDUs. This setup verifies that one tenant cannot access another’s hardware—a critical requirement when clients operate in regulated sectors. Security verification processes confirm that only authorised personnel interact with specific compartments.
Weight load ratings need to be considered for high-density deployments. A fully populated 42U rack can weigh over 1,000 kg, requiring floor structures that can support concentrated loads. Compliance with local building codes and fire regulations is mandatory, especially in multi-storey buildings where load distribution affects structural integrity. Check these requirements before purchase to avoid costly modifications during installation.
Protection against malicious bots and automated attacks goes beyond physical infrastructure, but the principle applies: a solid security posture is built from multiple layers. Physical cabinet security, environmental monitoring and access logging is the foundation upon which network and application defences are built.
Practical planning before ordering avoids delays and extra costs. Lead times, access logistics and installation sequencing all impact project timelines.
Made-to-order floor standing cabinets typically take 3-10 working days to manufacture and dispatch. Standard shelves, accessories and stock items often ship next day or within 1-2 business days. Check stock add availability and lead times when comparing vendors as displayed times may not include weekends or public holidays.
Access checks and appropriate server rack transport cases prevent delivery complications:
A standard installation sequence ensures stability:
A server data rack is a long-term asset, typically serving 10-15 years while servers and switches are cycled every 3-5 years. Decisions made at purchase determine how easily the rack can adapt to changing requirements.
Regular maintenance keeps it reliable and compliant:
Leave some spare U space at initial deployment to make future expansion easier. 20-30% reserve provides room for extra servers, upgraded PDUs or new security appliances without needing a second rack. This is cheaper than moving equipment under pressure.
Trends through the 2020s show increasing rack power density and wider use of deeper chassis. High-capacity storage arrays and AI servers often require 800-1000mm depth so deeper cabinets are a good choice even if current equipment fits in 600mm. Robust vertical PDU rails with higher amperage circuits future-proof against power growth.
Document the rack layout, cabling plan and power budget at deployment time and it will pay dividends during audits and upgrades. A simple spreadsheet of U positions, equipment names, power draws and network connections turns a multi-hour troubleshooting session into a 5 minute reference task. As edge computing and on-premises AI workloads grow through 2027-2030 this will become even more valuable for capacity planning.
A server data rack is the foundation of reliable IT. Choosing the right height, depth and type (open frame or enclosed cabinet) depends on equipment, site constraints and security requirements. Cooling, power distribution and cable management determines ongoing efficiency and physical security features support data protection regulations.
Before you ask for quotes or order, list all the equipment you need to mount and calculate the total U height. Measure your installation space, including doorways and ceiling clearance. Create a checklist of height, depth, weight rating, door type, cable management, PDU requirements and delivery lead time. Comparing vendors against this spec reduces the risk of buying the wrong thing.
The server racks available in 2026 range from a 6U wall mounted data cabinet for a branch office to a 47U co-lo rack for multiple tenants. Choosing the right server data rack now means your infrastructure will be reliable through to the late 2020s and reduce costs and disruption as equipment changes. A methodical approach to buying – based on specs not assumptions – delivers measurable benefits in maintainability, scalability and total cost of ownership.
